What's Logical Optimizing in TiDB

First of all

Actually, every logical rule struct has a method named optimize()

rules of logical

From here, we can see logical optimizing items will be applied one by one.

var optRuleList = []logicalOptRule{
 &gcSubstituter{},
 &columnPruner{},
 &resultReorder{},
 &buildKeySolver{},
 &decorrelateSolver{},
 &semiJoinRewriter{},
 &aggregationEliminator{},
 &skewDistinctAggRewriter{},
 &projectionEliminator{},
 &maxMinEliminator{},
 &ppdSolver{},
 &outerJoinEliminator{},
 &partitionProcessor{},
 &collectPredicateColumnsPoint{},
 &aggregationPushDownSolver{},
 &pushDownTopNOptimizer{},
 &syncWaitStatsLoadPoint{},
 &joinReOrderSolver{},
 &columnPruner{}, // column pruning again at last, note it will mess up the results of buildKeySolver
}

gcSubstituter

By mysql reference of Generated Column(in short: gc), we can see what the function of gc is. And from here, you can figure out how tidb implment gc in period of logical plan. There are four parts of operands, (Selection, Projection, Sort, Aggregation), will subtitute gc as index.

1. LogicalSelection:

   LogicalSelection represents a where or having predicate. firstly, in generated column function, index wouldn't none. Because of every calculating is based on index expression. secondly, when predicate operands are =, >, >=, <, <=, like, or, and, not. TiDB'll deal with it using generated column. However, when predicate is in, there is a limition that all of scalars are the same type.

2. LogicalProjection:

   LogicalProjection represents a select fields plan and TiDB'll loop every field(selected colums from SQL) and try subsitiuting generated column.

3. LogicalSort:

   LogicalSort stands for the order by plan. if there are any sort item in a query.

4. LogicalAggregation:

   LogicalAggregation represents an aggregate plan. And all agg functions are here. if there any field could be subtitiuted into one genereated colum, it'd be done.

   // AggFuncCount is the name of Count function.
   AggFuncCount = "count"
   // AggFuncSum is the name of Sum function.
   AggFuncSum = "sum"
   // AggFuncAvg is the name of Avg function.
   AggFuncAvg = "avg"
   // AggFuncFirstRow is the name of FirstRowColumn function.
   AggFuncFirstRow = "firstrow"
   // AggFuncMax is the name of max function.
   AggFuncMax = "max"
   // AggFuncMin is the name of min function.
   AggFuncMin = "min"
   // AggFuncGroupConcat is the name of group_concat function.
   AggFuncGroupConcat = "group_concat"
   // AggFuncBitOr is the name of bit_or function.
   AggFuncBitOr = "bit_or"
   // AggFuncBitXor is the name of bit_xor function.
   AggFuncBitXor = "bit_xor"
   // AggFuncBitAnd is the name of bit_and function.
   AggFuncBitAnd = "bit_and"
   // AggFuncVarPop is the name of var_pop function
   AggFuncVarPop = "var_pop"
   // AggFuncVarSamp is the name of var_samp function
   AggFuncVarSamp = "var_samp"
   // AggFuncStddevPop is the name of stddev_pop/std/stddev function
   AggFuncStddevPop = "stddev_pop"
   // AggFuncStddevSamp is the name of stddev_samp function
   AggFuncStddevSamp = "stddev_samp"
   // AggFuncJsonArrayagg is the name of json_arrayagg function
   AggFuncJsonArrayagg = "json_arrayagg"
   // AggFuncJsonObjectAgg is the name of json_objectagg function
   AggFuncJsonObjectAgg = "json_objectagg"
   // AggFuncApproxCountDistinct is the name of approx_count_distinct function.
   AggFuncApproxCountDistinct = "approx_count_distinct"
   // AggFuncApproxPercentile is the name of approx_percentile function.
   AggFuncApproxPercentile = "approx_percentile"

columnPruner

1. Actually, there are too many operands implmented pruneCoumns, you can PTAL at it's interface. After parsing AST, TiDB has already had a basic logic plan and column info without any tuning, when we step in here. I'll choose LogicalSelection which is one of the easiest to take a look deeply.

2. That just deals with every column selected in sql or filterd in predicate and prunes part of columns which don't need. In LogicalSelection, as result of func filter is nil, so result is equal to columns selected plus predicate for filtering.

   func extractColumns(result []*Column, expr Expression, filter func(*Column) bool) []*Column {
    switch v := expr.(type) {
    case *Column:
     if filter == nil || filter(v) {
      result = append(result, v)
     }
    case *ScalarFunction:
     for _, arg := range v.GetArgs() {
      result = extractColumns(result, arg, filter)
     }
    }
    return result
   }

resultReorder

1. ResultReorder reorder query results, which is not a common rule for all queries, it's specially implemented for a few customers. And here is a short comment in code place.

   /*
   Results of some queries are not ordered, for example:

       create table t (a int); insert into t values (1), (2); select a from t;

   In the case above, the result can be `1 2` or `2 1`, which is not ordered.
   This rule reorders results by modifying or injecting a Sort operator:
    1. iterate the plan from the root, and ignore all input-order operators (Sel/Proj/Limit);
    2. when meeting the first non-input-order operator,
       2.1. if it's a Sort, update it by appending all output columns into its order-by list,
       2.2. otherwise, inject a new Sort upon this operator.
   */

2. At here, based on the such clear comment, TiDB'll do 1, 2.1 and 2.2 by func completeSort and func injectSort. PTAL at #pr for details.

buildKeyInfo

BuildKeyInfo as their name will collect the information of unique keys into schema(selfSchema and childSchema) and check keys of schema from query input coule be used. in addition, that to check if a query returns no more than one row is also an important action inside of this step. more details

decorrelateSolver

1. what's apply? from comments, LogicalApply gets one row from outer executor and gets one row from inner executor according to outer row.

2. which means, there wouldn't have optimization without Apply operand logic.

3. if innerPlan is LogicalSelection, action is set new apply-plan children and reoptimize it using the same decorrelateSolver rule, you can see here.

4. if innerPlan is LogicalMaxOneRow, action is the same as LogicalSelection.

5. if innerPlan is LogicalProjection and JoinType is LeftOuterJoin, action is it doesn't have optimization, because of below comments, every comparation will return 1 since the projection is evaluated after the join. And when an Apply is apply.JoinType != SemiJoin && apply.JoinType != LeftOuterSemiJoin && apply.JoinType != AntiSemiJoin && apply.JoinType != AntiLeftOuterSemiJoin, it'll step to next step and try to substitute the all the schema with new expressions which maybe have been optimized by columnPruner, which mainly it does is substitued all expressions or columns like gcSubstitute.

6. if innerPlan is LogicalAggregation,

   select (select 1 from t1 where t1.a=t2.a) from t2;
   -- when t1.a=t2.a is false, the result should be null
   -- after decorrelateSolver, it'll be a format below
   select t1.* from t2 left outer join (select distinct(t1.a) as a from t1) as sub on t2.a = sub.a;
   -- | t2.a |      | t1.a |        | t2.a | t1.a | join result |      | join result |
   -- |   1  | join |  0   |  -->   |   1  |   0  |     nll     | -->  | 1 | 1 |  1  |
   -- |   2  |      |  1   |        |   1  |   1  |      1      |
   --                               |   2  |   1  |     null    |
   --                               |   2  |   1  |     null    |

7. if innerPlan is LogicalLimit and apply.JoinType != SemiJoin && apply.JoinType != LeftOuterSemiJoin && apply.JoinType != AntiSemiJoin && apply.JoinType != AntiLeftOuterSemiJoin, that means if LogicalLimit is not SemiJoin, the output of it might be expanded even though we are limit 1. because of function of semi join below, if we did expanding, we'd get semi join the result of limit number of rows.

   select * from sale_detail;
   --返回结果。
   +------------+-------------+-------------+------------+------------+
   | shop_name  | customer_id | total_price | sale_date  | region     |
   +------------+-------------+-------------+------------+------------+
   | s1         | c1          | 100.1       | 2013       | china      |
   | s2         | c2          | 100.2       | 2013       | china      |
   | s3         | c3          | 100.3       | 2013       | china      |
   +------------+-------------+-------------+------------+------------+
   select * from sale_detail_sj;
   --返回结果。
   +------------+-------------+-------------+------------+------------+
   | shop_name  | customer_id | total_price | sale_date  | region     |
   +------------+-------------+-------------+------------+------------+
   | s1         | c1          | 100.1       | 2013       | china      |
   | s2         | c2          | 100.2       | 2013       | china      |
   | s5         | c2          | 100.2       | 2013       | china      |
   | s2         | c2          | 100.2       | 2013       | china      |
   +------------+-------------+-------------+------------+------------+

   select * from sale_detail a left semi join sale_detail_sj b on a.total_price=b.total_price;

   +------------+-------------+-------------+------------+------------+
   | shop_name  | customer_id | total_price | sale_date  | region     |
   +------------+-------------+-------------+------------+------------+
   | s2         | c2          | 100.2       | 2013       | china      |
   | s1         | c1          | 100.1       | 2013       | china      |
   +------------+-------------+-------------+------------+------------+

   [right result]  select count(*) from test t1 where exists (select value from test t2 where t1.id = t2.id limit 1);
   [wrong result]  select count(*) from test t1 a semi join test t2 where t1.id = t2.id limit 1;

8. if innerPlan is LogicalAggregation, It'll check if Apply can be pulled up and an aggregation can be pulled up, then, do related actions like add sum flag.

9. if innerPlan is LogicalSort, Since TiDB only pull up Selection, Projection, Aggregation, MaxOneRow, so there just setp in childen optimization.

The text may help you understand it easily.

semiJoinRewriter

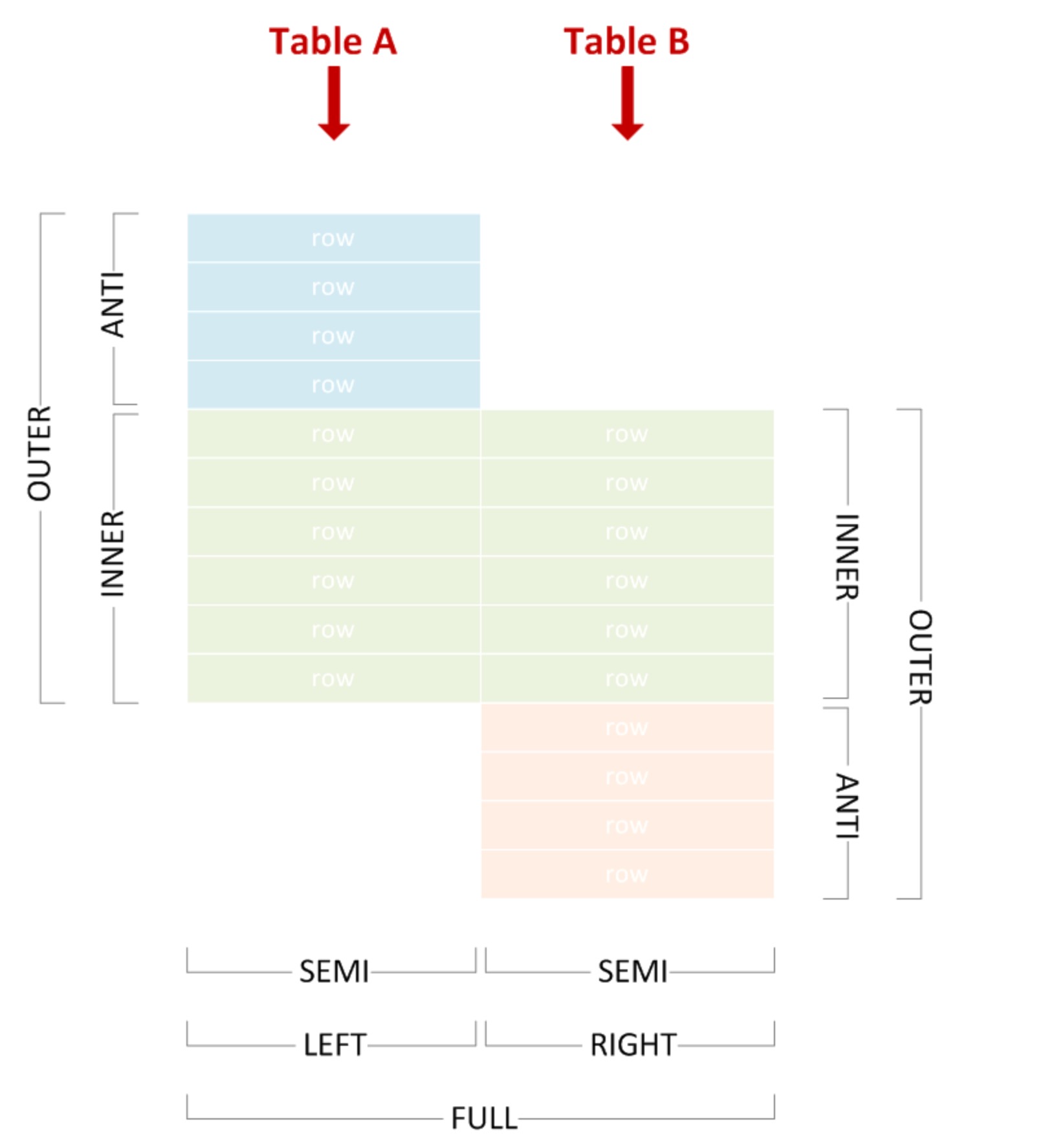

all of join types could show as pic below, which'll help understand what semi join is, more details PTAL on JOIN Terminology.:

If it's semi join or outer semi join, then outer table condition should be pushed down into suboperand. And TiDB implemnted distinct by firstRow | group by, so, in some specific scernaios for avoiding that an aggregation may block the predicate push down, TiDB creates an selection Operand to push down conditions. Like an example below, the HashAgg_22 firstly do a distinct operation as inner table, which a benefit is if there is any condition , then, that could be push down, and inner table size'll be small for a good performance. finally, after semiJoinRewriter step, it'll return an projection operand for select aimied fields and more details are here and this #PR.

mysql> create table t(id int,a int,b int);
mysql> explain select * from t where exists (select /*+ SEMI_JOIN_REWRITE() */ 1 from t t1 join t t2 where t1.a = t2.a and t1.a = t.a);
+------------------------------------+----------+-----------+---------------+-------------------------------------------------------+
| id                                 | estRows  | task      | access object | operator info                                         |
+------------------------------------+----------+-----------+---------------+-------------------------------------------------------+
| HashJoin_17                        | 9990.00  | root      |               | inner join, equal:[eq(test.t.a, test.t.a)]            |
| ├─HashAgg_22(Build)                | 7992.00  | root      |               | group by:test.t.a, funcs:firstrow(test.t.a)->test.t.a |
| │ └─HashJoin_23                    | 12487.50 | root      |               | inner join, equal:[eq(test.t.a, test.t.a)]            |
| │   ├─TableReader_30(Build)        | 9990.00  | root      |               | data:Selection_29                                     |
| │   │ └─Selection_29               | 9990.00  | cop[tikv] |               | not(isnull(test.t.a))                                 |
| │   │   └─TableFullScan_28         | 10000.00 | cop[tikv] | table:t2      | keep order:false, stats:pseudo                        |
| │   └─TableReader_27(Probe)        | 9990.00  | root      |               | data:Selection_26                                     |
| │     └─Selection_26               | 9990.00  | cop[tikv] |               | not(isnull(test.t.a))                                 |
| │       └─TableFullScan_25         | 10000.00 | cop[tikv] | table:t1      | keep order:false, stats:pseudo                        |
| └─TableReader_21(Probe)            | 9990.00  | root      |               | data:Selection_20                                     |
|   └─Selection_20                   | 9990.00  | cop[tikv] |               | not(isnull(test.t.a))                                 |
|     └─TableFullScan_19             | 10000.00 | cop[tikv] | table:t       | keep order:false, stats:pseudo                        |
+------------------------------------+----------+-----------+---------------+-------------------------------------------------------+

-- if t2 has conditions like `t2.b = xxx`, that can be push down to `selection`.
mysql> explain select * from t where exists (select /*+ SEMI_JOIN_REWRITE() */ 1 from t t1 join t t2 where t1.a = t2.a and t1.a = t.a and t1.b = 123);
+------------------------------------+----------+-----------+---------------+-------------------------------------------------------+
| id                                 | estRows  | task      | access object | operator info                                         |
+------------------------------------+----------+-----------+---------------+-------------------------------------------------------+
| HashJoin_17                        | 9.99     | root      |               | inner join, equal:[eq(test.t.a, test.t.a)]            |
| ├─HashAgg_22(Build)                | 7.99     | root      |               | group by:test.t.a, funcs:firstrow(test.t.a)->test.t.a |
| │ └─HashJoin_24                    | 12.49    | root      |               | inner join, equal:[eq(test.t.a, test.t.a)]            |
| │   ├─TableReader_27(Build)        | 9.99     | root      |               | data:Selection_26                                     |
| │   │ └─Selection_26               | 9.99     | cop[tikv] |               | eq(test.t.b, 123), not(isnull(test.t.a))              |
| │   │   └─TableFullScan_25         | 10000.00 | cop[tikv] | table:t1      | keep order:false, stats:pseudo                        |
| │   └─TableReader_30(Probe)        | 9990.00  | root      |               | data:Selection_29                                     |
| │     └─Selection_29               | 9990.00  | cop[tikv] |               | not(isnull(test.t.a))                                 |
| │       └─TableFullScan_28         | 10000.00 | cop[tikv] | table:t2      | keep order:false, stats:pseudo                        |
| └─TableReader_21(Probe)            | 9990.00  | root      |               | data:Selection_20                                     |
|   └─Selection_20                   | 9990.00  | cop[tikv] |               | not(isnull(test.t.a))                                 |
|     └─TableFullScan_19             | 10000.00 | cop[tikv] | table:t       | keep order:false, stats:pseudo                        |
+------------------------------------+----------+-----------+---------------+-------------------------------------------------------+
12 rows in set (0.01 sec)

aggregationEliminator

Actually, aggregationEliminator will eliminate distinct in the aggregation function if the aggregation args have unique key column and if any aggregation can be eliminated, it'll be done. Like example below, IndexFullScan_13 chould be push down to TiKV side. more details are here and this #PR

mysql> create table t1(a int , unique key(a));

-- without aggregationEliminator
mysql> desc select count(distinct a) from t;
+--------------------------+----------+-----------+---------------------+------------------------------------------+
| id                       | estRows  | task      | access object       | operator info                            |
+--------------------------+----------+-----------+---------------------+------------------------------------------+
| StreamAgg_6              | 1.00     | root      |                     | funcs:count(distinct test.t.a)->Column#3 |
| └─IndexReader_14         | 10000.00 | root      |                     | index:IndexFullScan_13                   |
|   └─IndexFullScan_13     | 10000.00 | cop[tikv] | table:t, index:a(a) | keep order:false, stats:pseudo           |
+--------------------------+--------

-- with aggregationEliminator
mysql> desc select count(distinct a) from t1;
+----------------------------+----------+-----------+----------------------+----------------------------------+
| id                         | estRows  | task      | access object        | operator info                    |
+----------------------------+----------+-----------+----------------------+----------------------------------+
| StreamAgg_20               | 1.00     | root      |                      | funcs:count(Column#5)->Column#3  |
| └─IndexReader_21           | 1.00     | root      |                      | index:StreamAgg_8                |
|   └─StreamAgg_8            | 1.00     | cop[tikv] |                      | funcs:count(test.t1.a)->Column#5 |
|     └─IndexFullScan_19     | 10000.00 | cop[tikv] | table:t1, index:a(a) | keep order:false, stats:pseudo   |
+----------------------------+----------+-----------+----------------------+----------------------------------+

skewDistinctAggRewriter

Comments are very clear for skewDistinctAggRewriter, PTAL at here

// skewDistinctAggRewriter will rewrite group distinct aggregate into 2 level aggregates, e.g.:
//
// select S_NATIONKEY as s, count(S_SUPPKEY), count(distinct S_NAME) from supplier group by s;
//
// will be rewritten to
//
// select S_NATIONKEY as s, sum(c), count(S_NAME) from (
//   select S_NATIONKEY, S_NAME, count(S_SUPPKEY) c from supplier group by S_NATIONKEY, S_NAME
// ) as T group by s;
//
// If the group key is highly skewed and the distinct key has large number of distinct values
// (a.k.a. high cardinality), the query execution will be slow. This rule may help to ease the
// skew issue.
//
// The rewrite rule only applies to query that satisfies:
// - The aggregate has at least 1 group by column (the group key can be columns or expressions)
// - The aggregate has 1 and only 1 distinct aggregate function (limited to count, avg, sum)
//
// This rule is disabled by default. Use tidb_opt_skew_distinct_agg to enable the rule.

projectionEliminator

The projectionEliminator eliminates the redundant projection in a logical plan. From here, The actions it does is trying to extract all of columns from scalar functions in SQL-selected fields.

maxMinEliminator

The maxMinEliminator tries to convert max/min to Limit+Sort operators. Actually, there are two sceranio which can be divided into, on the one hand, it's just one aggFuc or multi aggFucs like select max(a) from t + select min(a) from t + select max(b) from t. For multi aggFucs, this rule'll check and split every agg into a slice, then, try to eliminate all of them using index. more details are here

ppdSolver

The ppd named PredicatePushDown from insight of oracle database, and this step pushes down the predicates in the where/on/having clauses as deeply as possible. It will accept a predicate that is an expression slice, and return the expressions that can't be pushed. Lots of operands have implmented this interface, please debug it when you are facing a problem related it. Interestingly, from this page, you know, sometime, people tend to write rudentant join because of easy thinking and writing. In this #PR, we can see TiDB has implemnted outer join elimination and outer join elimination with distinct. And an example are here below to show what the ppd is:

-- OUTER JOIN Elimination, they are equal, A UNIQUE constraint on the left table (here: ADDRESS.ADDRESS_ID) is sufficient to show that for every CUSTOMER there can be at most one ADDRESS
SELECT c.* FROM customer c LEFT JOIN address a ON c.address_id = a.address_id
SELECT * FROM customer c

-- OUTER JOIN Elimination with DISTINCT, they are equal, when TiDB already has a UNIQUE constraint on (FIRST_NAME, LAST_NAME)
SELECT DISTINCT first_name, last_name FROM actor a LEFT JOIN film_actor fa ON a.actor_id = fa.actor_id
SELECT DISTINCT first_name, last_name FROM actor a

partitionProcessor

Also comments in code space are very clear, PTAL. Mainly, What it does is rewriting an select query into UnionScan and prune the columns in datasource.

// partitionProcessor rewrites the ast for table partition.
// Used by static partition prune mode.
/*
// create table t (id int) partition by range (id)
//   (partition p1 values less than (10),
//    partition p2 values less than (20),
//    partition p3 values less than (30))
//
// select * from t is equal to
// select * from (union all
//      select * from p1 where id < 10
//      select * from p2 where id < 20
//      select * from p3 where id < 30)
*/
// partitionProcessor is here because it's easier to prune partition after predicate push down.

collectPredicateColumnsPoint

Actually, It'll collect collect the indices which includes following conditions:

1. the indices contained the any one of histNeededColumns, eg: histNeededColumns contained A,B columns, and idx_a is composed up by A column, then we thought the idx_a should be collected.
2. The stats condition of idx_a can't meet loading all of info, which means its stats was evicted previously.

And, in here comparing with doc of tidb_stats_load_sync_wait, you could easily understand what kind of actions does if have on logical optimization. However, it just sends and the load column/index stats requests to stats handle, exactly, which was done in step of syncWaitStatsLoadPoint.

aggregationPushDownSolver

EliminateAggregation will eliminate aggregation grouped by unique key, like something below:

-- there are equal, If a is a unique key, so this min() could be eliminated.
select min(b) from t group by a;
select b from t group by a

pushDownTopNOptimizer

pushDownTopN will push down the topN or limit operator during logical optimization. Actually, what it does is just push topN to children operand.

syncWaitStatsLoadPoint

SyncWaitStatsLoad syncs and waits for stats load until timeout with tidb_stats_load_sync_wait and tidb_stats_load_pseudo_timeout

joinReOrderSolver

This step recursively collects join groups and applies join reorder algorithm for each group. And it was composed with DP algorithm, greedy algorithm and joinOrderGroup, like hint function of leading.
